Navoximod  (Synonyms: GDC-0919; NLG-​919)

Cat. No.: HY-18770B Purity: 99.99% ee.: 99.69%
COA Handling Instructions

Navoximod (GDC-0919; NLG-​919) is a potent IDO (indoleamine-(2,3)-dioxygenase) pathway inhibitor with Ki/EC50 of 7 nM/75 nM.

For research use only. We do not sell to patients.

Navoximod Chemical Structure

Navoximod Chemical Structure

CAS No. : 1402837-78-8

Size Price Stock Quantity
Solid + Solvent (Highly Recommended)
10 mM * 1 mL in DMSO
ready for reconstitution
USD 429 In-stock
Solution
10 mM * 1 mL in DMSO USD 429 In-stock
Solid
1 mg USD 198 In-stock
5 mg USD 420 In-stock
10 mg USD 630 In-stock
50 mg USD 1000 In-stock
100 mg USD 1400 In-stock
200 mg   Get quote
500 mg   Get quote

* Please select Quantity before adding items.

This product is a controlled substance and not for sale in your territory.

Customer Review

Based on 10 publication(s) in Google Scholar

Other Forms of Navoximod:

Top Publications Citing Use of Products

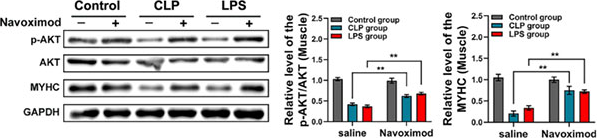

    Navoximod purchased from MedChemExpress. Usage Cited in: J Cachexia Sarcopenia Muscle. 2023 Mar 7.  [Abstract]

    Navoximod reverses the decrease in MyHC level induced by CLP or LPS in GAS muscle, and increases the relative p-AKT/AKT level, in mice.

    View All Indoleamine 2,3-Dioxygenase (IDO) Isoform Specific Products:

    • Biological Activity

    • Protocol

    • Purity & Documentation

    • References

    • Customer Review

    Description

    Navoximod (GDC-0919; NLG-​919) is a potent IDO (indoleamine-(2,3)-dioxygenase) pathway inhibitor with Ki/EC50 of 7 nM/75 nM.

    IC50 & Target[1]

    IDO

    7 nM (Ki)

    IDO

    75 nM (EC50)

    In Vitro

    Using IDO-expressing human monocyte-derived dendritic cells (DCs) in allogeneic mixed lymphocyte reaction (MLR) reactions, Navoximod (NLG919) potently blocks IDO-induced T cell suppression and restores robust T cell responses with an ED50=80 nM. Similarly, using IDO-expressing mouse DCs from tumor-draining lymph nodes, Navoximod abrogates IDO-induced suppression of antigen-specific T cells (OT-I) in vitro, with ED50=120 nM[1]. Navoximod inhibits the IDO activity in a concentration-dependent manner with an EC50 of 0.95 μM. PEG2k-Fmoc-NLG(L) is less active (EC50 of 3.4 μM) in inhibiting IDO compared with free Navoximod while PEG2k-Fmoc-NLG(S) is least active (EC50>10 μM). Coculture of IDO+tumor cells with splenocytes isolated from BALB/c mice leads to significant inhibition of T-cell proliferation. This inhibition is significantly attenuated when the mixed cells are treated with Navoximod. PEG2k-Fmoc-NLG(L) is also active in reversing the inhibitory effect of tumour cells although slightly less potent than Navoximod [3].

    MedChemExpress (MCE) has not independently confirmed the accuracy of these methods. They are for reference only.

    In Vivo

    VNavoximod (NLG919) is orally bioavailable (F>70%); and has a favorable pharmacokinetic and toxicity profile. In mice, a single oral administration of Navoximod reduces the concentration of plasma and tissue Kyn by ~50%. In vivo, in mice bearing large established B16F10 tumors, administration of Navoximod markedly enhances the anti-tumor responses of naïve, resting pmel-1 cells to vaccination with cognate hgp100 peptide plus CpG-1826 in IFA. In this stringent established-tumor model, Navoximod plus pmel-1/vaccine produce a dramatic collapse of tumor size within 4 days of vaccination (~95% reduction in tumor volume compare to control animals receiving pmel-1/vaccine alone without Navoximod)[1]. When combined with NSC 362856 (TMZ)+radiation therapy (RT), both Navoximod and D-1MT (Indoximod) enhance survival relative to mice treated with TMZ+RT alone[2].

    MedChemExpress (MCE) has not independently confirmed the accuracy of these methods. They are for reference only.

    Clinical Trial
    Molecular Weight

    316.37

    Formula

    C18H21FN2O2

    CAS No.
    Appearance

    Solid

    Color

    White to light yellow

    SMILES

    O[C@H](CC1)CC[C@]1([H])[C@H](O)C[C@@H]2N3C(C4=C2C(F)=CC=C4)=CN=C3

    Shipping

    Room temperature in continental US; may vary elsewhere.

    Storage

    -20°C, stored under nitrogen

    *In solvent : -80°C, 6 months; -20°C, 1 month (stored under nitrogen)

    Solvent & Solubility
    In Vitro:

    DMSO : 100 mg/mL (316.09 mM; Need ultrasonic; Hygroscopic DMSO has a significant impact on the solubility of product, please use newly opened DMSO)

    Preparing
    Stock Solutions
    Concentration Solvent Mass 1 mg 5 mg 10 mg
    1 mM 3.1609 mL 15.8043 mL 31.6086 mL
    5 mM 0.6322 mL 3.1609 mL 6.3217 mL
    View the Complete Stock Solution Preparation Table

    * Please refer to the solubility information to select the appropriate solvent. Once prepared, please aliquot and store the solution to prevent product inactivation from repeated freeze-thaw cycles.
    Storage method and period of stock solution: -80°C, 6 months; -20°C, 1 month (stored under nitrogen). When stored at -80°C, please use it within 6 months. When stored at -20°C, please use it within 1 month.

    • Molarity Calculator

    • Dilution Calculator

    Mass (g) = Concentration (mol/L) × Volume (L) × Molecular Weight (g/mol)

    Mass
    =
    Concentration
    ×
    Volume
    ×
    Molecular Weight *

    Concentration (start) × Volume (start) = Concentration (final) × Volume (final)

    This equation is commonly abbreviated as: C1V1 = C2V2

    Concentration (start)

    C1

    ×
    Volume (start)

    V1

    =
    Concentration (final)

    C2

    ×
    Volume (final)

    V2

    In Vivo:

    Select the appropriate dissolution method based on your experimental animal and administration route.

    For the following dissolution methods, please ensure to first prepare a clear stock solution using an In Vitro approach and then sequentially add co-solvents:
    To ensure reliable experimental results, the clarified stock solution can be appropriately stored based on storage conditions. As for the working solution for in vivo experiments, it is recommended to prepare freshly and use it on the same day.
    The percentages shown for the solvents indicate their volumetric ratio in the final prepared solution. If precipitation or phase separation occurs during preparation, heat and/or sonication can be used to aid dissolution.

    • Protocol 1

      Add each solvent one by one:  10% DMSO    40% PEG300    5% Tween-80    45% Saline

      Solubility: ≥ 3 mg/mL (9.48 mM); Clear solution

      This protocol yields a clear solution of ≥ 3 mg/mL (saturation unknown).

      Taking 1 mL working solution as an example, add 100 μL DMSO stock solution (30.0 mg/mL) to 400 μL PEG300, and mix evenly; then add 50 μL Tween-80 and mix evenly; then add 450 μL Saline to adjust the volume to 1 mL.

      Preparation of Saline: Dissolve 0.9 g sodium chloride in ddH₂O and dilute to 100 mL to obtain a clear Saline solution.
    • Protocol 2

      Add each solvent one by one:  10% DMSO    90% (20% SBE-β-CD in Saline)

      Solubility: ≥ 3 mg/mL (9.48 mM); Clear solution

      This protocol yields a clear solution of ≥ 3 mg/mL (saturation unknown).

      Taking 1 mL working solution as an example, add 100 μL DMSO stock solution (30.0 mg/mL) to 900 μL 20% SBE-β-CD in Saline, and mix evenly.

      Preparation of 20% SBE-β-CD in Saline (4°C, storage for one week): 2 g SBE-β-CD powder is dissolved in 10 mL Saline, completely dissolve until clear.
    In Vivo Dissolution Calculator
    Please enter the basic information of animal experiments:

    Dosage

    mg/kg

    Animal weight
    (per animal)

    g

    Dosing volume
    (per animal)

    μL

    Number of animals

    Recommended: Prepare an additional quantity of animals to account for potential losses during experiments.
    Please enter your animal formula composition:
    %
    DMSO +
    +
    %
    Tween-80 +
    %
    Saline
    Recommended: Keep the proportion of DMSO in working solution below 2% if your animal is weak.
    The co-solvents required include: DMSO, . All of co-solvents are available by MedChemExpress (MCE). , Tween 80. All of co-solvents are available by MedChemExpress (MCE).
    Calculation results:
    Working solution concentration: mg/mL
    Method for preparing stock solution: mg drug dissolved in μL  DMSO (Stock solution concentration: mg/mL).

    *In solvent : -80°C, 6 months; -20°C, 1 month (stored under nitrogen)

    The concentration of the stock solution you require exceeds the measured solubility. The following solution is for reference only. If necessary, please contact MedChemExpress (MCE).
    Method for preparing in vivo working solution for animal experiments: Take μL DMSO stock solution, add μL . μL , mix evenly, next add μL Tween 80, mix evenly, then add μL Saline.
     If the continuous dosing period exceeds half a month, please choose this protocol carefully.
    Please ensure that the stock solution in the first step is dissolved to a clear state, and add co-solvents in sequence. You can use ultrasonic heating (ultrasonic cleaner, recommended frequency 20-40 kHz), vortexing, etc. to assist dissolution.
    Purity & Documentation

    Purity: 99.99% ee.: 99.69%

    References
    Cell Assay
    [3]

    The IDO inhibitory effect of PEG2k-Fmoc-NLG is tested by an in vitro IDO assay. Briefly, HeLa cells are seeded in a 96-well plate at a cell density of 5000 cells per well and allowed to grow overnight. Recombinant human IFN-γ is then added to each well with a final concentration of 50 ng/mL. At the same time, various concentrations of PEG2k-Fmoc-NLG(L), PEG2k-Fmoc-NLG(S) or Navoximod (NLG919) (50 nM-20 μM) are added to the cells. After 48 h of incubation, 150 μL of the supernatants per well is transferred to a new 96-well plate. Seventy-five μL of 30% trichloroacetic acid is added into each well and the mixture is incubated at 50°C for 30 min to hydrolyse N-formylkynurenine to kynurenine. For colorimetric assay, supernatants are transferred to a new 96-well plate, mixed with equal volume of Ehrlich reagent (2% p-dimethylamino-benzaldehyde w/v in glacial acetic acid), and incubated for 10 min at RT. Reaction product is measured at 490 nm by a plate reader[3].

    MCE has not independently confirmed the accuracy of these methods. They are for reference only.

    Animal Administration
    [2]

    Mice[2]
    Mice are immobilized in a stereotactic frame for tumor implantation. Briefly, the skull is shaved and exposed with a 0.5 cm skin incision. With antiseptic technique, 105 GL261 cells (suspended in 3 μL RPMI-1640) are injected at the following coordinates with respect to the bregma on the right side (antero-posterior, -2 mm; medio-lateral, 2 mm; dorso-ventral, 3 mm). This placement reproducibly yielded tumor growth in a paracortical area of the posterolateral right frontal lobe. Tumor-bearing mice are treated with combinations of oral DL-1MT (2 mg/mL D-1MT mixed with 2 mg/mL L-1MT) in drinking water, D-1MT (4 mg/mL) in drinking water, Navoximod (6 mg/mL) in drinking water, intraperitoneal NSC-26271, intraperitoneal NSC 362856, and/or total-body radiation (500 cGy from a 137Cs source), as detailed in figure legends. Mice are observed daily, and sacrificed when they became ill or moribund[2].

    MCE has not independently confirmed the accuracy of these methods. They are for reference only.

    References

    Complete Stock Solution Preparation Table

    * Please refer to the solubility information to select the appropriate solvent. Once prepared, please aliquot and store the solution to prevent product inactivation from repeated freeze-thaw cycles.
    Storage method and period of stock solution: -80°C, 6 months; -20°C, 1 month (stored under nitrogen). When stored at -80°C, please use it within 6 months. When stored at -20°C, please use it within 1 month.

    Optional Solvent Concentration Solvent Mass 1 mg 5 mg 10 mg 25 mg
    DMSO 1 mM 3.1609 mL 15.8043 mL 31.6086 mL 79.0214 mL
    5 mM 0.6322 mL 3.1609 mL 6.3217 mL 15.8043 mL
    10 mM 0.3161 mL 1.5804 mL 3.1609 mL 7.9021 mL
    15 mM 0.2107 mL 1.0536 mL 2.1072 mL 5.2681 mL
    20 mM 0.1580 mL 0.7902 mL 1.5804 mL 3.9511 mL
    25 mM 0.1264 mL 0.6322 mL 1.2643 mL 3.1609 mL
    30 mM 0.1054 mL 0.5268 mL 1.0536 mL 2.6340 mL
    40 mM 0.0790 mL 0.3951 mL 0.7902 mL 1.9755 mL
    50 mM 0.0632 mL 0.3161 mL 0.6322 mL 1.5804 mL
    60 mM 0.0527 mL 0.2634 mL 0.5268 mL 1.3170 mL
    80 mM 0.0395 mL 0.1976 mL 0.3951 mL 0.9878 mL
    100 mM 0.0316 mL 0.1580 mL 0.3161 mL 0.7902 mL
